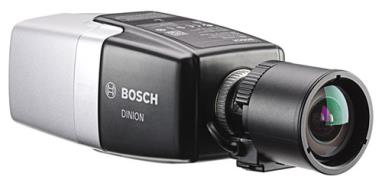

NBN-63023-B 固定式摄像机2MP HDR

• 在低照度条件下性能优异

• 用于触发相关警报和快速检索数据的内置Essential Video Analytics

• 智能动态降噪(IDNR)可减少多达50%的带宽和存储需求

• 扩展动态范围模式可以同时呈现明亮区域和阴暗区域中的细节

• 自动后焦调整，便于快速安装

Power Consumption	7.2 W max.
Current draw (PoE)	200 mA max.
Current draw (12 VDC)	600 mA max.
Sensor (1080p version)
Sensor type	1/2.8‑inch CMOS
Effective pixels	1920 (H) x 1080 (V); 2MP (approx.)
Starlight sensitivity
(3100K, reflectivity 89%, 1/25, F1.2, 30IRE)
Color	0.0069 lx
Mono	0.0008 lx
Dynamic range – HDR mode
High Dynamic Range (10-bit, 3x exposure)	120 dB WDR
Measured according to IEC 62676 Part 5	110 dB WDR
Video streaming
Video compression	H.264 (MP); M- JPEG

Streaming	Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
Camera processing latency	<55 ms (max. average at 1080p60)
GOP structure	IP, IBP, IBBP
Encoding interval	1 to 50 [60] ips
Video resolution (H x V)
1080p HD	1920 x 1080 (1080p version only)
Upright mode 1080p	1080 x 1920 (1080p version only)
1.3 MP (5:4)	1280 x 1024 (1080p version only)
720p HD	1280 x 720
Upright mode 720p	720 x 1280
D1 4:3 (cropped)	704 x 480
480p SD	Encoding: 704 x 480; Displayed: 854 x 480
432p SD	768 x 432
288p SD	512 x 288
240p SD	Encoding: 352 x 240; Displayed: 432 x 240
